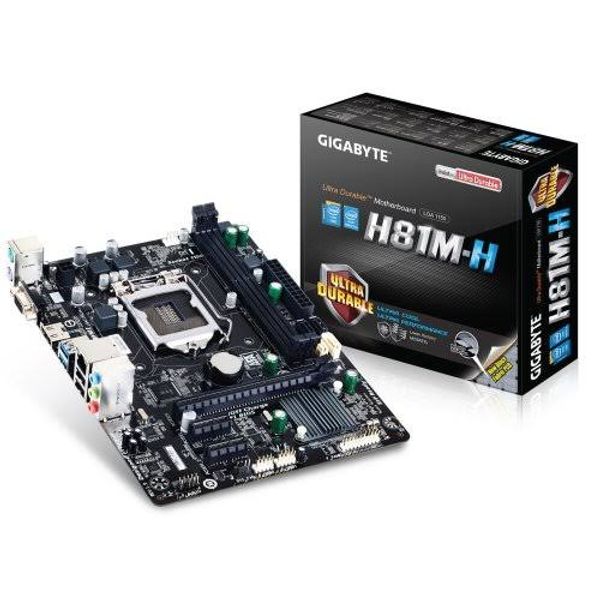

Chipset Intel H81 Express Chipset
BIOS 1 x 32 Mbit flash
Use of licensed AMI EFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor Micro ATX Form Factor; 22.6cm x 17cm
Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots
Graphics:
Graphics Integrated Graphics Processor – Intel HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920×1200
1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
* Support for HDMI 1.4a version.
Connector & Ports:
HDMI 1 x HDMI
D-Sub (s) 1 x D-Sub
USB (s) Chipset:
2 x USB 3.0/2.0 ports on the back panel
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s) Realtek GbE LAN chip (10/100/1000 Mbit)
Network & Connectivity LAN Chipset: Realtek GbE LAN
LAN Speed (Mbps): 10/100/1000Mbps
WiFi: No
Bluetooth: No
Supported Storage Chipset:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
2 x USB 2.0/1.1 headers
1 x Clear CMOS jumper
Memory:
Type DDR3
Slots 2 x 1.5V DIMM sockets
Supported Memory Dual channel memory architecture
Support for DDR3 1600/1333 MHz memory modules
Support for non-ECC memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory 16 GB
Others:
Special Features Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Smart TimeLock
Smart Recovery 2
Support for ON/OFF Charge
Warranty Info
Years 3 Years
